MNIST DCGAN with Keras 3 — PyTorch Backend

This complete workflow modernizes the archived DCGAN. A fixed 100-dimensional noise panel tracks the same generated samples across training. Full execution uses 50 epochs and batch size 128. Reduce EPOCHS to 1 or 2 for a quicker run.

Losses and selected images are diagnostics, not proof that the generator learned the complete data distribution.

Runtime dependency check

import importlib.util
import subprocess
import sys
from pathlib import Path

REQUIRED_RUNTIME = {'keras': 'keras', 'torch': 'torch'}
COLAB_EXTRAS = {}
missing_required = [
    package for module, package in REQUIRED_RUNTIME.items()
    if importlib.util.find_spec(module) is None
]
missing_extras = [
    package for module, package in COLAB_EXTRAS.items()
    if importlib.util.find_spec(module) is None
]
if missing_extras and "google.colab" in sys.modules:
    subprocess.check_call(
        [sys.executable, "-m", "pip", "install", "-q", *missing_extras]
    )
    missing_extras = []
if missing_required or missing_extras:
    missing = ", ".join(missing_required + missing_extras)
    raise RuntimeError(
        f"Missing notebook dependencies: {missing}. Locally run "
        "`uv sync --group notebooks`; in Colab restart the runtime if an "
        "installation cell just changed the environment."
    )
print("runtime dependency check passed")

runtime dependency check passed

%matplotlib inline

Keras-to-PyTorch crosswalk

This optional implementation uses the same Torch runtime as the canonical native PyTorch path. Keras compile() selects the optimizer and loss, fit() owns the explicit batch and epoch loop, and callbacks provide high-level training control. Data, splits, budgets, evidence, and scientific conclusions remain aligned with the canonical PyTorch workflow.

Imports, data, and fixed seeds

import hashlib
import json
import os

os.environ["KERAS_BACKEND"] = "torch"

import keras
import matplotlib.pyplot as plt
import numpy as np
import torch
from keras import layers
from sklearn.metrics import (
    ConfusionMatrixDisplay,
    accuracy_score,
    classification_report,
    confusion_matrix,
)
from sklearn.model_selection import train_test_split

assert keras.backend.backend() == "torch"
print(
    f"Keras {keras.__version__}; backend={keras.backend.backend()}; "
    f"PyTorch {torch.__version__}"
)

SEED = 42
EPOCHS = 50  # Reduce to 1 or 2 for a quicker run.
BATCH_SIZE = 128
LATENT_DIM = 100
LABEL_SMOOTHING = 0.0
keras.utils.set_random_seed(SEED)
(x_train, _), _ = keras.datasets.mnist.load_data()
x_train = (x_train.astype("float32") - 127.5) / 127.5
x_train = x_train[..., np.newaxis]
dataset = torch.utils.data.DataLoader(
    torch.utils.data.TensorDataset(torch.from_numpy(x_train)),
    batch_size=BATCH_SIZE,
    shuffle=True,
    drop_last=True,
    generator=torch.Generator().manual_seed(SEED),
)
fixed_noise = keras.random.normal((16, LATENT_DIM), seed=SEED)

Keras 3.15.1; backend=torch; PyTorch 2.13.0

Define generator and discriminator

generator = keras.Sequential(
    [
        keras.Input(shape=(LATENT_DIM,)),
        layers.Dense(7 * 7 * 256, use_bias=False),
        layers.BatchNormalization(),
        layers.LeakyReLU(negative_slope=0.2),
        layers.Reshape((7, 7, 256)),
        layers.Conv2DTranspose(128, 5, padding="same", use_bias=False),
        layers.BatchNormalization(),
        layers.LeakyReLU(negative_slope=0.2),
        layers.Conv2DTranspose(64, 5, strides=2, padding="same", use_bias=False),
        layers.BatchNormalization(),
        layers.LeakyReLU(negative_slope=0.2),
        layers.Conv2DTranspose(1, 5, strides=2, padding="same", activation="tanh"),
    ],
    name="generator",
)
discriminator = keras.Sequential(
    [
        keras.Input(shape=(28, 28, 1)),
        layers.Conv2D(64, 5, strides=2, padding="same"),
        layers.LeakyReLU(negative_slope=0.2),
        layers.Dropout(0.3),
        layers.Conv2D(128, 5, strides=2, padding="same"),
        layers.LeakyReLU(negative_slope=0.2),
        layers.Dropout(0.3),
        layers.Flatten(),
        layers.Dense(1),
    ],
    name="discriminator",
)
class AdversarialModel(keras.Model):
    def __init__(self, generator, discriminator, latent_dim, label_smoothing):
        super().__init__()
        self.generator = generator
        self.discriminator = discriminator
        self.latent_dim = latent_dim
        self.label_smoothing = label_smoothing
        self.seed_generator = keras.random.SeedGenerator(SEED)
        self.generator_loss_tracker = keras.metrics.Mean(name="generator_loss")
        self.discriminator_loss_tracker = keras.metrics.Mean(name="discriminator_loss")
        self.built = True

    @property
    def metrics(self):
        return [self.generator_loss_tracker, self.discriminator_loss_tracker]

    def compile(self, generator_optimizer, discriminator_optimizer, loss_function):
        super().compile()
        self.generator_optimizer = generator_optimizer
        self.discriminator_optimizer = discriminator_optimizer
        self.loss_function = loss_function

    def train_step(self, real_images):
        if isinstance(real_images, (tuple, list)):
            real_images = real_images[0]
        batch_size = real_images.shape[0]

        noise = keras.random.normal(
            (batch_size, self.latent_dim), seed=self.seed_generator
        )
        generated_images = self.generator(noise, training=True)

        self.zero_grad()
        real_logits = self.discriminator(real_images, training=True)
        generated_logits = self.discriminator(generated_images.detach(), training=True)
        real_targets = torch.ones_like(real_logits) * (1.0 - self.label_smoothing)
        discriminator_loss = self.loss_function(real_targets, real_logits) + self.loss_function(
            torch.zeros_like(generated_logits), generated_logits
        )
        discriminator_loss.backward()
        discriminator_weights = list(self.discriminator.trainable_weights)
        discriminator_gradients = [weight.value.grad for weight in discriminator_weights]
        with torch.no_grad():
            self.discriminator_optimizer.apply(
                discriminator_gradients, discriminator_weights
            )

        noise = keras.random.normal(
            (batch_size, self.latent_dim), seed=self.seed_generator
        )
        self.zero_grad()
        generated_logits = self.discriminator(
            self.generator(noise, training=True), training=True
        )
        generator_loss = self.loss_function(
            torch.ones_like(generated_logits), generated_logits
        )
        generator_loss.backward()
        generator_weights = list(self.generator.trainable_weights)
        generator_gradients = [weight.value.grad for weight in generator_weights]
        with torch.no_grad():
            self.generator_optimizer.apply(generator_gradients, generator_weights)

        self.generator_loss_tracker.update_state(generator_loss)
        self.discriminator_loss_tracker.update_state(discriminator_loss)
        return {
            "generator_loss": self.generator_loss_tracker.result(),
            "discriminator_loss": self.discriminator_loss_tracker.result(),
        }


gan = AdversarialModel(generator, discriminator, LATENT_DIM, LABEL_SMOOTHING)
gan.compile(
    generator_optimizer=keras.optimizers.Adam(1e-4),
    discriminator_optimizer=keras.optimizers.Adam(1e-4),
    loss_function=keras.losses.BinaryCrossentropy(from_logits=True),
)

Train adversarially through the high-level fit workflow

history = gan.fit(dataset, epochs=EPOCHS, verbose=2, shuffle=False)
generator_losses = [float(value) for value in history.history["generator_loss"]]
discriminator_losses = [
    float(value) for value in history.history["discriminator_loss"]
]

Epoch 1/50

468/468 - 45s - 96ms/step - discriminator_loss: 0.9501 - generator_loss: 1.1166

Epoch 2/50

468/468 - 45s - 97ms/step - discriminator_loss: 1.1429 - generator_loss: 1.1004

Epoch 3/50

468/468 - 47s - 100ms/step - discriminator_loss: 1.2701 - generator_loss: 0.8998

Epoch 4/50

468/468 - 46s - 99ms/step - discriminator_loss: 1.2378 - generator_loss: 0.9660

Epoch 5/50

468/468 - 46s - 98ms/step - discriminator_loss: 1.2050 - generator_loss: 0.9548

Epoch 6/50

468/468 - 45s - 96ms/step - discriminator_loss: 1.1235 - generator_loss: 1.0585

Epoch 7/50

468/468 - 45s - 96ms/step - discriminator_loss: 1.0826 - generator_loss: 1.1477

Epoch 8/50

468/468 - 44s - 95ms/step - discriminator_loss: 1.0668 - generator_loss: 1.1641

Epoch 9/50

468/468 - 45s - 96ms/step - discriminator_loss: 1.0830 - generator_loss: 1.1802

Epoch 10/50

468/468 - 46s - 98ms/step - discriminator_loss: 1.1113 - generator_loss: 1.1390

Epoch 11/50

468/468 - 46s - 98ms/step - discriminator_loss: 1.1729 - generator_loss: 1.0382

Epoch 12/50

468/468 - 46s - 99ms/step - discriminator_loss: 1.2009 - generator_loss: 1.0575

Epoch 13/50

468/468 - 46s - 98ms/step - discriminator_loss: 1.1905 - generator_loss: 0.9940

Epoch 14/50

468/468 - 46s - 98ms/step - discriminator_loss: 1.2168 - generator_loss: 0.9711

Epoch 15/50

468/468 - 45s - 95ms/step - discriminator_loss: 1.2158 - generator_loss: 0.9938

Epoch 16/50

468/468 - 45s - 96ms/step - discriminator_loss: 1.2122 - generator_loss: 0.9559

Epoch 17/50

468/468 - 46s - 98ms/step - discriminator_loss: 1.2222 - generator_loss: 0.9594

Epoch 18/50

468/468 - 45s - 96ms/step - discriminator_loss: 1.2281 - generator_loss: 0.9420

Epoch 19/50

468/468 - 45s - 97ms/step - discriminator_loss: 1.2329 - generator_loss: 0.9398

Epoch 20/50

468/468 - 47s - 99ms/step - discriminator_loss: 1.2328 - generator_loss: 0.9307

Epoch 21/50

468/468 - 46s - 98ms/step - discriminator_loss: 1.2263 - generator_loss: 0.9443

Epoch 22/50

468/468 - 46s - 99ms/step - discriminator_loss: 1.2356 - generator_loss: 0.9306

Epoch 23/50

468/468 - 47s - 100ms/step - discriminator_loss: 1.2343 - generator_loss: 0.9165

Epoch 24/50

468/468 - 46s - 98ms/step - discriminator_loss: 1.2293 - generator_loss: 0.9540

Epoch 25/50

468/468 - 47s - 100ms/step - discriminator_loss: 1.2308 - generator_loss: 0.9266

Epoch 26/50

468/468 - 46s - 99ms/step - discriminator_loss: 1.2399 - generator_loss: 0.9538

Epoch 27/50

468/468 - 46s - 99ms/step - discriminator_loss: 1.2286 - generator_loss: 0.9429

Epoch 28/50

468/468 - 46s - 99ms/step - discriminator_loss: 1.2335 - generator_loss: 0.9464

Epoch 29/50

468/468 - 46s - 99ms/step - discriminator_loss: 1.2244 - generator_loss: 0.9469

Epoch 30/50

468/468 - 45s - 95ms/step - discriminator_loss: 1.2358 - generator_loss: 0.9210

Epoch 31/50

468/468 - 46s - 99ms/step - discriminator_loss: 1.2262 - generator_loss: 0.9002

Epoch 32/50

468/468 - 46s - 99ms/step - discriminator_loss: 1.2387 - generator_loss: 0.9045

Epoch 33/50

468/468 - 46s - 98ms/step - discriminator_loss: 1.2335 - generator_loss: 0.9394

Epoch 34/50

468/468 - 45s - 97ms/step - discriminator_loss: 1.2282 - generator_loss: 0.9861

Epoch 35/50

468/468 - 46s - 98ms/step - discriminator_loss: 1.2346 - generator_loss: 0.9477

Epoch 36/50

468/468 - 46s - 99ms/step - discriminator_loss: 1.2329 - generator_loss: 0.9341

Epoch 37/50

468/468 - 45s - 97ms/step - discriminator_loss: 1.2338 - generator_loss: 0.9383

Epoch 38/50

468/468 - 45s - 96ms/step - discriminator_loss: 1.2388 - generator_loss: 0.9175

Epoch 39/50

468/468 - 46s - 99ms/step - discriminator_loss: 1.2406 - generator_loss: 0.9118

Epoch 40/50

468/468 - 44s - 95ms/step - discriminator_loss: 1.2353 - generator_loss: 0.9326

Epoch 41/50

468/468 - 50s - 106ms/step - discriminator_loss: 1.2468 - generator_loss: 0.9037

Epoch 42/50

468/468 - 51s - 109ms/step - discriminator_loss: 1.2487 - generator_loss: 0.9067

Epoch 43/50

468/468 - 51s - 108ms/step - discriminator_loss: 1.2423 - generator_loss: 0.9620

Epoch 44/50

468/468 - 50s - 108ms/step - discriminator_loss: 1.2402 - generator_loss: 0.9436

Epoch 45/50

468/468 - 50s - 108ms/step - discriminator_loss: 1.2401 - generator_loss: 0.9409

Epoch 46/50

468/468 - 51s - 108ms/step - discriminator_loss: 1.2474 - generator_loss: 0.9201

Epoch 47/50

468/468 - 51s - 108ms/step - discriminator_loss: 1.2504 - generator_loss: 0.9023

Epoch 48/50

468/468 - 50s - 106ms/step - discriminator_loss: 1.2489 - generator_loss: 0.8945

Epoch 49/50

468/468 - 49s - 105ms/step - discriminator_loss: 1.2560 - generator_loss: 0.9010

Epoch 50/50

468/468 - 49s - 105ms/step - discriminator_loss: 1.2482 - generator_loss: 0.9313

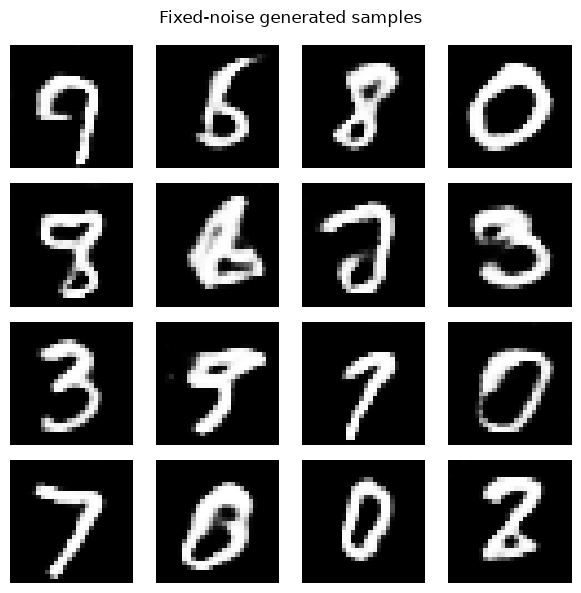

Fixed-noise evidence

generated = generator(fixed_noise, training=False).detach().cpu().numpy()

fig, axes = plt.subplots(4, 4, figsize=(6, 6))
for axis, image in zip(axes.flat, generated):
    axis.imshow(image.squeeze(), cmap="gray", vmin=-1, vmax=1)
    axis.axis("off")
plt.suptitle("Fixed-noise generated samples")
plt.tight_layout()
plt.show()

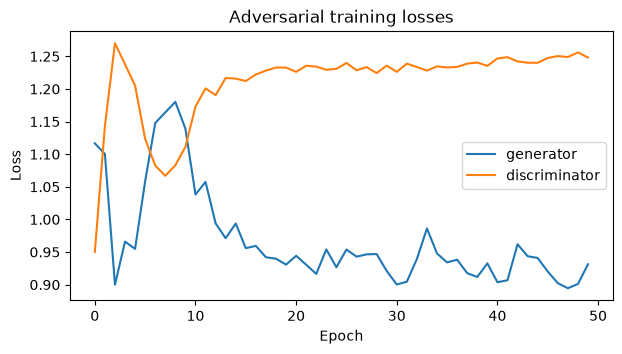

fig, ax = plt.subplots(figsize=(7, 3.5))
ax.plot(generator_losses, label="generator")
ax.plot(discriminator_losses, label="discriminator")
ax.set(title="Adversarial training losses", xlabel="Epoch", ylabel="Loss")
ax.legend()
plt.show()

pixel_diversity = float(generated.std(axis=0).mean())
print(f"mean per-pixel sample standard deviation: {pixel_diversity:.4f}")
print(
    "HELIO_RESULT "
    + json.dumps(
        {
            "epochs": EPOCHS,
            "generated_shape": list(generated.shape),
            "generator_loss": generator_losses[-1],
            "discriminator_loss": discriminator_losses[-1],
            "pixel_diversity": pixel_diversity,
        },
        sort_keys=True,
    )
)
assert generated.shape == (16, 28, 28, 1)
assert np.isfinite(generated).all()
assert pixel_diversity > 0

mean per-pixel sample standard deviation: 0.3466
HELIO_RESULT {"discriminator_loss": 1.2481979131698608, "epochs": 50, "generated_shape": [16, 28, 28, 1], "generator_loss": 0.931276798248291, "pixel_diversity": 0.34664812684059143}

Try it yourself in Keras

Change one choice at a time and keep the data split and evaluation unchanged:

• try discriminator label smoothing of 0.1.

• vary the latent dimension while keeping the fixed noise samples.

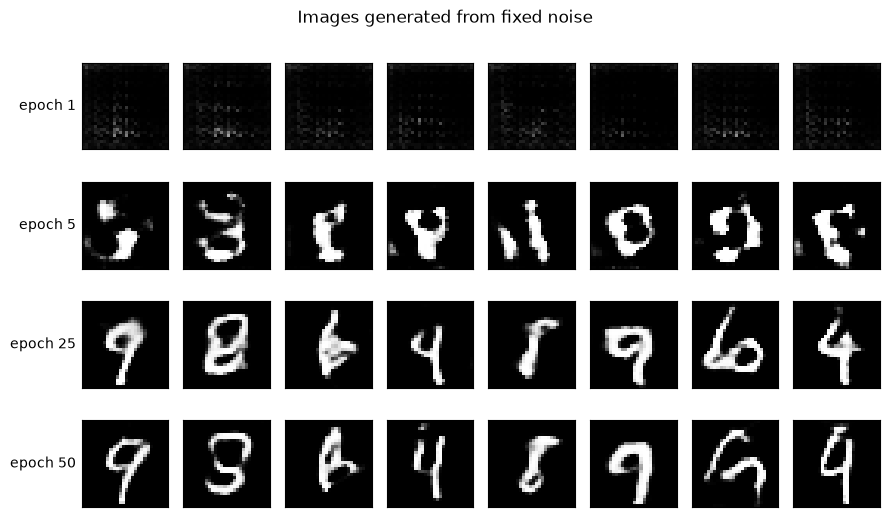

• save the fixed-noise grid at several points during training.
