SEP Occurrence Forecasting — Native PyTorch#
This research-style workflow uses the archived train/test pickles exactly as supplied. The 49 predictors are anonymous, and the archive has no event IDs or timestamps. Consequently, this is sample-level teaching evidence: it cannot establish event-aware generalization or physical feature attribution.
In Colab, choose Runtime → Run all; the bootstrap downloads and verifies only four pickles.
Runtime dependency check#
import importlib.util
import subprocess
import sys
from pathlib import Path
REQUIRED_RUNTIME = {'torch': 'torch'}
COLAB_EXTRAS = {}
missing_required = [
package for module, package in REQUIRED_RUNTIME.items()
if importlib.util.find_spec(module) is None
]
missing_extras = [
package for module, package in COLAB_EXTRAS.items()
if importlib.util.find_spec(module) is None
]
if missing_extras and "google.colab" in sys.modules:
subprocess.check_call(
[sys.executable, "-m", "pip", "install", "-q", *missing_extras]
)
missing_extras = []
if missing_required or missing_extras:
missing = ", ".join(missing_required + missing_extras)
raise RuntimeError(
f"Missing notebook dependencies: {missing}. Locally run "
"`uv sync --group notebooks`; in Colab restart the runtime if an "
"installation cell just changed the environment."
)
print("runtime dependency check passed")
runtime dependency check passed
%matplotlib inline
Imports and deterministic configuration#
These tools handle the tabular archive, preprocessing, classification metrics, and figures. The fixed seed keeps the sample-level comparison reproducible.
import json
import os
import random
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from sklearn.metrics import (
accuracy_score,
average_precision_score,
balanced_accuracy_score,
classification_report,
confusion_matrix,
precision_recall_curve,
roc_auc_score,
)
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import StandardScaler
SEED = 42
random.seed(SEED)
np.random.seed(SEED)
Resolve the immutable archive#
The four supplied files contain the archived training and test samples. Their checksums are verified so every implementation starts from the same data.
import hashlib
import os
from pathlib import Path
from urllib.parse import quote
from urllib.request import urlopen
DATASET_ID = 'sep-curated'
DATASET_FILES = {'x_train.pkl': ('data/sep-curated/x_train.pkl', 'e809bf00498633f509a223d61f9b0006e6ed1803f6de22118bcf654f2ce8ba3b'), 'x_test.pkl': ('data/sep-curated/x_test.pkl', '1d0c5f84713d4fde34d567cdb62e9081c4d723f6fef9abd543137376350d5955'), 'y_train.pkl': ('data/sep-curated/y_train.pkl', 'd7aa048f6b081a9fb1fc00dde19872c0f67ae5b4c8620daa5984b679f9f9dbdc'), 'y_test.pkl': ('data/sep-curated/y_test.pkl', 'd44c5af108bab2b19f5f8082548282edd8aee89d57e15469516de1ca3f400ee5')}
def file_sha256(path):
digest = hashlib.sha256()
with Path(path).open("rb") as stream:
for chunk in iter(lambda: stream.read(1024 * 1024), b""):
digest.update(chunk)
return digest.hexdigest()
def resolve_dataset():
resolved = {}
override = os.getenv("HELIO_DATA_DIR")
cache_root = Path(
os.getenv("HELIO_DATA_CACHE", Path.home() / ".cache" / "helio-data-methods")
) / "datasets" / DATASET_ID
for filename, (relative_path, checksum) in DATASET_FILES.items():
candidates = []
if override:
root = Path(override).expanduser()
candidates.extend([root / DATASET_ID / filename, root / filename])
for root in [Path.cwd(), *Path.cwd().parents]:
candidates.append(root / relative_path)
target = cache_root / filename
candidates.append(target)
match = next(
(
candidate
for candidate in candidates
if candidate.is_file() and file_sha256(candidate) == checksum
),
None,
)
if match is None:
target.parent.mkdir(parents=True, exist_ok=True)
ref = os.getenv("HELIO_DATA_REF", "main")
url = (
"https://raw.githubusercontent.com/SavvasRaptis/helio-data-methods/"
f"{quote(ref, safe='')}/{quote(relative_path, safe='/')}"
)
try:
with urlopen(url, timeout=120) as response, target.open("wb") as output:
while chunk := response.read(1024 * 1024):
output.write(chunk)
except Exception as exc:
target.unlink(missing_ok=True)
raise RuntimeError(
f"Could not retrieve {DATASET_ID}/{filename}. Check network "
"access or set HELIO_DATA_DIR to the archived data directory."
) from exc
if file_sha256(target) != checksum:
target.unlink(missing_ok=True)
raise ValueError(
f"Checksum mismatch for {DATASET_ID}/{filename}; "
"the invalid download was removed."
)
match = target
resolved[filename] = match
return resolved
dataset_files = resolve_dataset()
print("verified dataset:", DATASET_ID)
for name in dataset_files:
print(f" {name} (checksum verified)")
verified dataset: sep-curated
x_train.pkl: data/sep-curated/x_train.pkl
x_test.pkl: data/sep-curated/x_test.pkl
y_train.pkl: data/sep-curated/y_train.pkl
y_test.pkl: data/sep-curated/y_test.pkl
Preserve the supplied test set and split training samples#
The supplied test set remains untouched. A stratified part of the supplied training samples is reserved for validation, and scaling is fitted only on the remaining training samples.
x_supplied_train = pd.read_pickle(dataset_files["x_train.pkl"]).to_numpy(dtype=np.float32)
x_test = pd.read_pickle(dataset_files["x_test.pkl"]).to_numpy(dtype=np.float32)
y_supplied_train = (
pd.read_pickle(dataset_files["y_train.pkl"]).to_numpy().reshape(-1).astype(np.int64)
)
y_test = pd.read_pickle(dataset_files["y_test.pkl"]).to_numpy().reshape(-1).astype(np.int64)
feature_names = np.asarray([f"anonymous feature {i}" for i in range(x_test.shape[1])])
train_indices, validation_indices = train_test_split(
np.arange(len(y_supplied_train)),
test_size=0.15,
random_state=SEED,
stratify=y_supplied_train,
)
x_train_raw = x_supplied_train[train_indices]
y_train = y_supplied_train[train_indices]
x_validation_raw = x_supplied_train[validation_indices]
y_validation = y_supplied_train[validation_indices]
scaler = StandardScaler().fit(x_train_raw)
x_train = scaler.transform(x_train_raw).astype(np.float32)
x_validation = scaler.transform(x_validation_raw).astype(np.float32)
x_test_scaled = scaler.transform(x_test).astype(np.float32)
counts = np.bincount(y_train, minlength=2)
majority_class = int(np.argmax(counts))
majority_prediction = np.full_like(y_test, majority_class)
class_weights = len(y_train) / (2.0 * np.maximum(counts, 1))
print(
f"train={len(y_train):,}, validation={len(y_validation):,}, "
f"supplied test={len(y_test):,}, positive prevalence={y_train.mean():.4f}"
)
print("class weights:", dict(enumerate(class_weights.round(3))))
train=13,846, validation=2,444, supplied test=1,811, positive prevalence=0.0125
class weights: {0: 0.506, 1: 40.017}
Establish the majority-class baseline#
SEP occurrences are rare in this archive, so overall accuracy alone can be misleading. The majority-class result provides context for the imbalance-aware metrics used below.
def classification_evidence(y_true, probability, label):
prediction = (probability >= 0.5).astype(np.int64)
evidence = {
"accuracy": float(accuracy_score(y_true, prediction)),
"balanced_accuracy": float(balanced_accuracy_score(y_true, prediction)),
"roc_auc": float(roc_auc_score(y_true, probability)),
"pr_auc": float(average_precision_score(y_true, probability)),
"confusion_matrix": confusion_matrix(y_true, prediction, labels=[0, 1]).tolist(),
}
print(label, json.dumps(evidence, indent=2))
print(classification_report(y_true, prediction, digits=3, zero_division=0))
return evidence
majority_probability = np.full(len(y_test), float(majority_class))
majority_evidence = classification_evidence(
y_test, majority_probability, "majority-class baseline"
)
majority-class baseline {
"accuracy": 0.9872998343456654,
"balanced_accuracy": 0.5,
"roc_auc": 0.5,
"pr_auc": 0.012700165654334622,
"confusion_matrix": [
[
1788,
0
],
[
23,
0
]
]
}
precision recall f1-score support
0 0.987 1.000 0.994 1788
1 0.000 0.000 0.000 23
accuracy 0.987 1811
macro avg 0.494 0.500 0.497 1811
weighted avg 0.975 0.987 0.981 1811
Train the weighted PyTorch classifier#
The network estimates the probability of SEP occurrence from the anonymous predictors. The weighted loss gives the less frequent SEP samples greater influence during fitting.
import torch
from torch import nn
from torch.utils.data import DataLoader, TensorDataset
EPOCHS = 40 # Reduce to 5 or 10 for a quicker run.
torch.manual_seed(SEED)
torch.use_deterministic_algorithms(True, warn_only=True) # Prefer repeatable operations when available.
DEVICE = torch.device(
"cuda" if torch.cuda.is_available()
else "mps" if torch.backends.mps.is_available()
else "cpu"
)
# Define the neural network used for SEP occurrence classification.
model = nn.Sequential(
nn.Linear(x_train.shape[1], 40, bias=False),
nn.BatchNorm1d(40),
nn.ReLU(),
nn.Linear(40, 30),
nn.ReLU(),
nn.Linear(30, 1),
).to(DEVICE)
# Give the rare positive class additional weight in the loss.
positive_weight = torch.tensor(
[counts[0] / max(counts[1], 1)], dtype=torch.float32, device=DEVICE
)
loss_function = nn.BCEWithLogitsLoss(pos_weight=positive_weight) # Weighted binary classification error.
optimizer = torch.optim.Adam(model.parameters()) # Adam updates the model weights.
loader = DataLoader(
TensorDataset(torch.from_numpy(x_train), torch.from_numpy(y_train).float()),
batch_size=256, # Number of samples used for each parameter update.
shuffle=True,
generator=torch.Generator().manual_seed(SEED),
)
training_losses, validation_losses = [], []
best_state, best_loss, patience_left = None, float("inf"), 5
for epoch in range(EPOCHS):
model.train()
batch_losses = []
for batch_x, batch_y in loader:
optimizer.zero_grad()
logits = model(batch_x.to(DEVICE)).squeeze(1)
loss = loss_function(logits, batch_y.to(DEVICE))
loss.backward()
optimizer.step()
batch_losses.append(loss.item())
model.eval()
with torch.no_grad():
val_logits = model(torch.from_numpy(x_validation).to(DEVICE)).squeeze(1)
val_loss = loss_function(
val_logits, torch.from_numpy(y_validation).float().to(DEVICE)
).item()
training_losses.append(float(np.mean(batch_losses)))
validation_losses.append(val_loss)
print(f"epoch {epoch + 1}: loss={training_losses[-1]:.4f}, val={val_loss:.4f}")
if val_loss < best_loss:
best_loss = val_loss
best_state = {key: value.detach().cpu().clone() for key, value in model.state_dict().items()}
patience_left = 5
else:
patience_left -= 1
if patience_left == 0:
break
model.load_state_dict(best_state)
model.to(DEVICE).eval()
with torch.no_grad():
probabilities = (
torch.sigmoid(model(torch.from_numpy(x_test_scaled).to(DEVICE)).squeeze(1))
.cpu()
.numpy()
)
epoch 1: loss=0.9031, val=0.7129
epoch 2: loss=0.6644, val=0.5792
epoch 3: loss=0.5544, val=0.5183
epoch 4: loss=0.5114, val=0.4985
epoch 5: loss=0.4778, val=0.6168
epoch 6: loss=0.4546, val=0.4187
epoch 7: loss=0.4506, val=0.3924
epoch 8: loss=0.5959, val=0.4271
epoch 9: loss=0.5074, val=0.3907
epoch 10: loss=0.4423, val=0.4043
epoch 11: loss=0.4307, val=0.3715
epoch 12: loss=0.4238, val=0.3603
epoch 13: loss=0.4136, val=0.3549
epoch 14: loss=0.3953, val=0.3652
epoch 15: loss=0.3939, val=0.3536
epoch 16: loss=0.3803, val=0.3908
epoch 17: loss=0.3900, val=0.3978
epoch 18: loss=0.3804, val=0.3428
epoch 19: loss=0.3693, val=0.3595
epoch 20: loss=0.3616, val=0.3684
epoch 21: loss=0.3475, val=0.3851
epoch 22: loss=0.3471, val=0.4384
epoch 23: loss=0.3458, val=0.4881

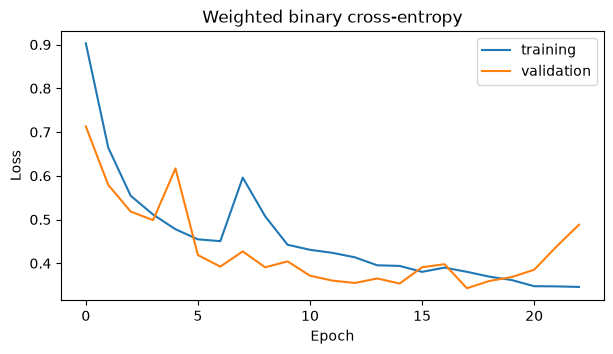

Inspect learning behavior#
The training and validation losses show whether the classifier continues to improve or begins to specialize too strongly to the training samples.
fig, ax = plt.subplots(figsize=(7, 3.5))
ax.plot(training_losses, label="training")
ax.plot(validation_losses, label="validation")
ax.set(title="Weighted binary cross-entropy", xlabel="Epoch", ylabel="Loss")
ax.legend()
plt.show()

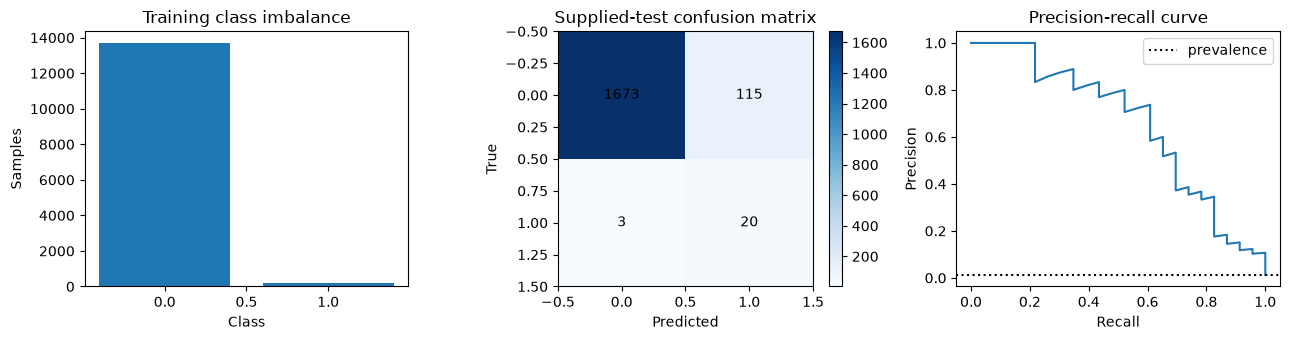

Evaluate the untouched supplied test set#
The final comparison reports class-wise behavior, balanced accuracy, ROC-AUC, and PR-AUC on the supplied test samples. These are sample-level results because the archive has no event identifiers or timestamps.
model_evidence = classification_evidence(y_test, probabilities, "model")
matrix = np.asarray(model_evidence["confusion_matrix"])
precision, recall, _ = precision_recall_curve(y_test, probabilities)
fig, axes = plt.subplots(1, 3, figsize=(13, 3.5))
axes[0].bar([0, 1], np.bincount(y_train, minlength=2))
axes[0].set(title="Training class imbalance", xlabel="Class", ylabel="Samples")
image = axes[1].imshow(matrix, cmap="Blues")
for (row, column), value in np.ndenumerate(matrix):
axes[1].text(column, row, str(value), ha="center", va="center")
axes[1].set(title="Supplied-test confusion matrix", xlabel="Predicted", ylabel="True")
fig.colorbar(image, ax=axes[1], fraction=0.046)
axes[2].plot(recall, precision)
axes[2].axhline(y_test.mean(), linestyle=":", color="black", label="prevalence")
axes[2].set(title="Precision-recall curve", xlabel="Recall", ylabel="Precision")
axes[2].legend()
plt.tight_layout()
plt.show()
print(
"HELIO_RESULT "
+ json.dumps(
{
"balanced_accuracy": model_evidence["balanced_accuracy"],
"majority_balanced_accuracy": majority_evidence["balanced_accuracy"],
"roc_auc": model_evidence["roc_auc"],
"pr_auc": model_evidence["pr_auc"],
"prediction_shape": list(probabilities.shape),
},
sort_keys=True,
)
)
assert probabilities.shape == y_test.shape
assert np.isfinite(probabilities).all()
model {
"accuracy": 0.9348426283821093,
"balanced_accuracy": 0.9026237720066141,
"roc_auc": 0.9830512596050969,
"pr_auc": 0.6571422222615371,
"confusion_matrix": [
[
1673,
115
],
[
3,
20
]
]
}
precision recall f1-score support
0 0.998 0.936 0.966 1788
1 0.148 0.870 0.253 23
accuracy 0.935 1811
macro avg 0.573 0.903 0.610 1811
weighted avg 0.987 0.935 0.957 1811
HELIO_RESULT {"balanced_accuracy": 0.9026237720066141, "majority_balanced_accuracy": 0.5, "pr_auc": 0.6571422222615371, "prediction_shape": [1811], "roc_auc": 0.9830512596050969}
