Coronal-Loop Reconstruction — Keras 3 — PyTorch Backend#
This research workflow reconstructs a loop’s z profile from its projected x/y coordinates and three archived scalar descriptors. It corrects the overlapping split in the legacy notebook: loops 0–2999 train, 3000–3749 validate, and 3750–4999 form the untouched final test set. All normalization is fit on training loops only.
In Colab, choose Runtime → Run all; the bootstrap verifies each archived array.
Runtime dependency check#
import importlib.util
import subprocess
import sys
from pathlib import Path
REQUIRED_RUNTIME = {'keras': 'keras', 'torch': 'torch'}
COLAB_EXTRAS = {}
missing_required = [
package for module, package in REQUIRED_RUNTIME.items()
if importlib.util.find_spec(module) is None
]
missing_extras = [
package for module, package in COLAB_EXTRAS.items()
if importlib.util.find_spec(module) is None
]
if missing_extras and "google.colab" in sys.modules:
subprocess.check_call(
[sys.executable, "-m", "pip", "install", "-q", *missing_extras]
)
missing_extras = []
if missing_required or missing_extras:
missing = ", ".join(missing_required + missing_extras)
raise RuntimeError(
f"Missing notebook dependencies: {missing}. Locally run "
"`uv sync --group notebooks`; in Colab restart the runtime if an "
"installation cell just changed the environment."
)
print("runtime dependency check passed")
runtime dependency check passed
%matplotlib inline
Keras-to-PyTorch crosswalk#
This optional implementation uses the same Torch runtime as the canonical
native PyTorch path. Keras compile() selects the optimizer and loss,
fit() owns the explicit batch and epoch loop, and callbacks provide
high-level training control. Data, splits, budgets, evidence, and scientific
conclusions remain aligned with the canonical PyTorch workflow.
Imports and deterministic configuration#
These tools load the archived loop geometry, evaluate reconstructed heights, and produce the diagnostic figures. Fixed seeds make the two implementations easier to compare.
import json
import os
import random
import matplotlib.pyplot as plt
import numpy as np
from sklearn.metrics import mean_absolute_error, mean_squared_error, r2_score
SEED = 42
random.seed(SEED)
np.random.seed(SEED)
Resolve the immutable arrays#
The archive stores the projected coordinates, loop descriptors, and target heights separately. Each array is checksum-verified before reconstruction.
import hashlib
import os
from pathlib import Path
from urllib.parse import quote
from urllib.request import urlopen
DATASET_ID = 'coronal-loops'
DATASET_FILES = {'X2D.npy': ('data/coronal-loops/X2D.npy', '48fdc54c387642ed1dba563b3a27e5aa666327689d0b8db67355aa3015c0d658'), 'Y2D.npy': ('data/coronal-loops/Y2D.npy', 'f5500bd93a542facd44bb0710abc2880bb0ea8ff7e769f64eb8332898c1bd35b'), 'LNGTH_L2D.npy': ('data/coronal-loops/LNGTH_L2D.npy', '38511b43978701e420cfd262fb98dfa2c816dbe8bb7f2ecd2759124073beb988'), 'DST2D_FP.npy': ('data/coronal-loops/DST2D_FP.npy', 'ff6e05c3679aa876beb390a2fe4531992e2752360b66fe0bcfbb8057bd9c6a0e'), 'angle_top.npy': ('data/coronal-loops/angle_top.npy', '4fb89537bb58b44f75ff222dbb53ea8596b1f2900657bbbf3d0eff2fc45796b2'), 'Z3D.npy': ('data/coronal-loops/Z3D.npy', '9c04fd96c1c158607259cfbc9ac8e758cfaaf50f627622ee3e9761323b6b8bac')}
def file_sha256(path):
digest = hashlib.sha256()
with Path(path).open("rb") as stream:
for chunk in iter(lambda: stream.read(1024 * 1024), b""):
digest.update(chunk)
return digest.hexdigest()
def resolve_dataset():
resolved = {}
override = os.getenv("HELIO_DATA_DIR")
cache_root = Path(
os.getenv("HELIO_DATA_CACHE", Path.home() / ".cache" / "helio-data-methods")
) / "datasets" / DATASET_ID
for filename, (relative_path, checksum) in DATASET_FILES.items():
candidates = []
if override:
root = Path(override).expanduser()
candidates.extend([root / DATASET_ID / filename, root / filename])
for root in [Path.cwd(), *Path.cwd().parents]:
candidates.append(root / relative_path)
target = cache_root / filename
candidates.append(target)
match = next(
(
candidate
for candidate in candidates
if candidate.is_file() and file_sha256(candidate) == checksum
),
None,
)
if match is None:
target.parent.mkdir(parents=True, exist_ok=True)
ref = os.getenv("HELIO_DATA_REF", "main")
url = (
"https://raw.githubusercontent.com/SavvasRaptis/helio-data-methods/"
f"{quote(ref, safe='')}/{quote(relative_path, safe='/')}"
)
try:
with urlopen(url, timeout=120) as response, target.open("wb") as output:
while chunk := response.read(1024 * 1024):
output.write(chunk)
except Exception as exc:
target.unlink(missing_ok=True)
raise RuntimeError(
f"Could not retrieve {DATASET_ID}/{filename}. Check network "
"access or set HELIO_DATA_DIR to the archived data directory."
) from exc
if file_sha256(target) != checksum:
target.unlink(missing_ok=True)
raise ValueError(
f"Checksum mismatch for {DATASET_ID}/{filename}; "
"the invalid download was removed."
)
match = target
resolved[filename] = match
return resolved
dataset_files = resolve_dataset()
print("verified dataset:", DATASET_ID)
for name in dataset_files:
print(f" {name} (checksum verified)")
verified dataset: coronal-loops
X2D.npy: data/coronal-loops/X2D.npy
Y2D.npy: data/coronal-loops/Y2D.npy
LNGTH_L2D.npy: data/coronal-loops/LNGTH_L2D.npy
DST2D_FP.npy: data/coronal-loops/DST2D_FP.npy
angle_top.npy: data/coronal-loops/angle_top.npy
Z3D.npy: data/coronal-loops/Z3D.npy
Assemble features and apply the corrected split#
Projected coordinates and three scalar descriptors are assembled for each loop. Normalization is estimated from loops 0–2999 only; loops 3000–3749 are used for validation and loops 3750–4999 remain the final test set.
x_coordinates = np.load(dataset_files["X2D.npy"], mmap_mode="r")
y_coordinates = np.load(dataset_files["Y2D.npy"], mmap_mode="r")
z_coordinates = np.load(dataset_files["Z3D.npy"], mmap_mode="r")
length = np.load(dataset_files["LNGTH_L2D.npy"]).astype(np.float32)
footpoint_distance = np.load(dataset_files["DST2D_FP.npy"]).astype(np.float32)
top_angle = np.load(dataset_files["angle_top.npy"]).astype(np.float32)
point_slice = slice(None)
train_indices = np.arange(0, 3000)
validation_indices = np.arange(3000, 3750)
test_indices = np.arange(3750, 5000)
def assemble(indices):
x = np.asarray(x_coordinates[point_slice, indices], dtype=np.float32).T
y = np.asarray(y_coordinates[point_slice, indices], dtype=np.float32).T
z = np.asarray(z_coordinates[point_slice, indices], dtype=np.float32).T
points = x.shape[1]
scalars = np.stack(
[length[indices], footpoint_distance[indices], top_angle[indices]], axis=1
)
scalar_channels = np.repeat(scalars[:, None, :], points, axis=1)
features = np.concatenate([x[..., None], y[..., None], scalar_channels], axis=2)
return features, z
x_train_raw, y_train_raw = assemble(train_indices)
x_validation_raw, y_validation_raw = assemble(validation_indices)
x_test_raw, y_test_raw = assemble(test_indices)
# Estimate normalization from the training loops only.
feature_mean = x_train_raw.mean(axis=(0, 1), keepdims=True)
feature_std = x_train_raw.std(axis=(0, 1), keepdims=True)
feature_std[feature_std < 1e-7] = 1
target_mean = y_train_raw.mean(axis=0, keepdims=True)
target_std = y_train_raw.std(axis=0, keepdims=True)
target_std[target_std < 1e-7] = 1
x_train = ((x_train_raw - feature_mean) / feature_std).astype(np.float32)
x_validation = ((x_validation_raw - feature_mean) / feature_std).astype(np.float32)
x_test = ((x_test_raw - feature_mean) / feature_std).astype(np.float32)
y_train = ((y_train_raw - target_mean) / target_std).astype(np.float32)
y_validation = ((y_validation_raw - target_mean) / target_std).astype(np.float32)
# Use the mean training height profile as a simple reference reconstruction.
training_mean_prediction = np.repeat(target_mean, len(y_test_raw), axis=0)
assert train_indices.max() < validation_indices.min() < test_indices.min()
print(
f"train={len(train_indices)}, validation={len(validation_indices)}, "
f"test={len(test_indices)}, points per loop={y_train.shape[1]}"
)
train=3000, validation=750, test=1250, points per loop=1500
Train the Keras convolutional regressor#
The one-dimensional convolutions follow the ordered points along each projected loop and return the full normalized height profile.
os.environ["KERAS_BACKEND"] = "torch"
import keras
import torch
from keras import layers
EPOCHS = 10 # Reduce to 3 or 5 for a quicker run.
keras.utils.set_random_seed(SEED)
torch.use_deterministic_algorithms(True)
assert keras.backend.backend() == "torch"
# Define the neural network used to reconstruct the loop height profile.
model = keras.Sequential(
[
keras.Input(shape=x_train.shape[1:]),
layers.Conv1D(32, 25, padding="same", activation="relu"),
layers.MaxPooling1D(4),
layers.Conv1D(64, 15, padding="same", activation="relu"),
layers.MaxPooling1D(4),
layers.Conv1D(64, 7, padding="same", activation="relu"),
layers.GlobalAveragePooling1D(),
layers.Dense(256, activation="relu"),
layers.Dense(y_train.shape[1]),
]
)
model.compile(optimizer=keras.optimizers.Adam(), loss="mse")
history = model.fit(
x_train,
y_train,
validation_data=(x_validation, y_validation),
epochs=EPOCHS,
batch_size=32,
callbacks=[
keras.callbacks.EarlyStopping(
monitor="val_loss", patience=2, restore_best_weights=True
)
],
verbose=2,
)
predictions_scaled = model.predict(x_test, verbose=0)
predictions = predictions_scaled * target_std + target_mean
losses = history.history
Epoch 1/10
94/94 - 1s - 11ms/step - loss: 0.2151 - val_loss: 17.2635
Epoch 2/10
94/94 - 1s - 8ms/step - loss: 0.0582 - val_loss: 16.2637
Epoch 3/10
94/94 - 1s - 8ms/step - loss: 0.0450 - val_loss: 14.4462
Epoch 4/10
94/94 - 1s - 8ms/step - loss: 0.0444 - val_loss: 12.1964
Epoch 5/10
94/94 - 1s - 8ms/step - loss: 0.0423 - val_loss: 11.8398
Epoch 6/10
94/94 - 1s - 8ms/step - loss: 0.0400 - val_loss: 9.4868
Epoch 7/10
94/94 - 1s - 8ms/step - loss: 0.0333 - val_loss: 10.2177
Epoch 8/10
94/94 - 1s - 8ms/step - loss: 0.0303 - val_loss: 10.3896
Inspect learning curves#

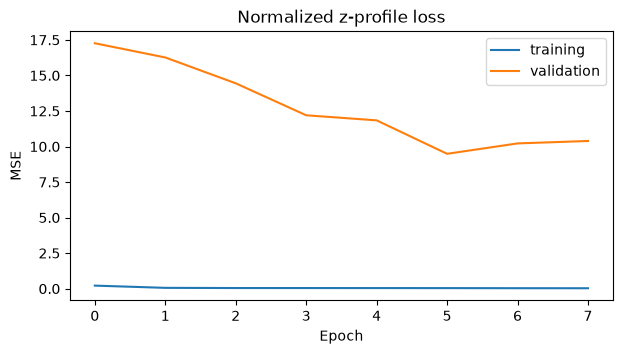

Training and validation losses track reconstruction error in normalized height. Their separation indicates how well the fitted mapping transfers to held-out loops.
fig, ax = plt.subplots(figsize=(7, 3.5))
ax.plot(losses["loss"], label="training")
ax.plot(losses["val_loss"], label="validation")
ax.set(title="Normalized z-profile loss", xlabel="Epoch", ylabel="MSE")
ax.legend()
plt.show()
Compare with the training-mean profile#
The learned reconstruction is compared with the mean height profile from the training loops. Residual and three-dimensional views show where the geometry is captured and where it is missed.
def regression_evidence(y_true, y_prediction):
point_mae = float(mean_absolute_error(y_true.ravel(), y_prediction.ravel()))
point_rmse = float(mean_squared_error(y_true.ravel(), y_prediction.ravel()) ** 0.5)
loop_mae = np.mean(np.abs(y_true - y_prediction), axis=1)
loop_rmse = np.sqrt(np.mean((y_true - y_prediction) ** 2, axis=1))
return {
"point_mae": point_mae,
"point_rmse": point_rmse,
"r2": float(r2_score(y_true.ravel(), y_prediction.ravel())),
"loop_mae_mean": float(loop_mae.mean()),
"loop_mae_median": float(np.median(loop_mae)),
"loop_rmse_mean": float(loop_rmse.mean()),
}
model_evidence = regression_evidence(y_test_raw, predictions)
baseline_evidence = regression_evidence(y_test_raw, training_mean_prediction)
print("model:", json.dumps(model_evidence, indent=2))
print("training-mean z-profile baseline:", json.dumps(baseline_evidence, indent=2))
residuals = y_test_raw - predictions

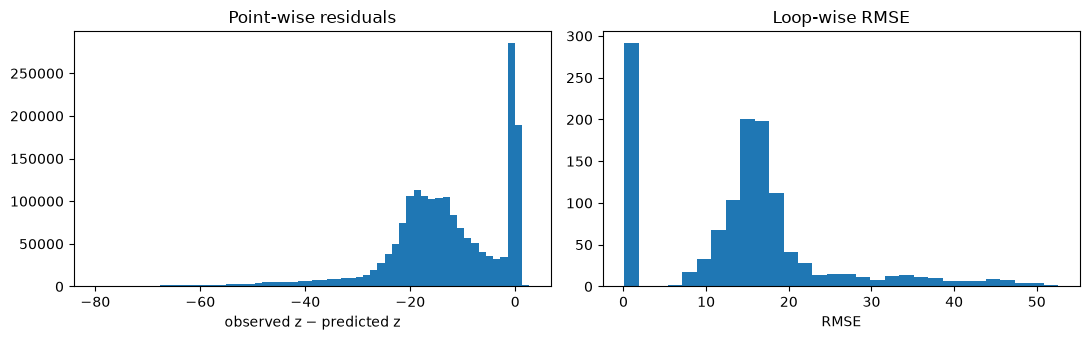

fig, axes = plt.subplots(1, 2, figsize=(11, 3.5))
axes[0].hist(residuals.ravel(), bins=60)
axes[0].set(title="Point-wise residuals", xlabel="observed z − predicted z")
loop_rmse = np.sqrt(np.mean(residuals**2, axis=1))
axes[1].hist(loop_rmse, bins=30)
axes[1].set(title="Loop-wise RMSE", xlabel="RMSE")
plt.tight_layout()
plt.show()

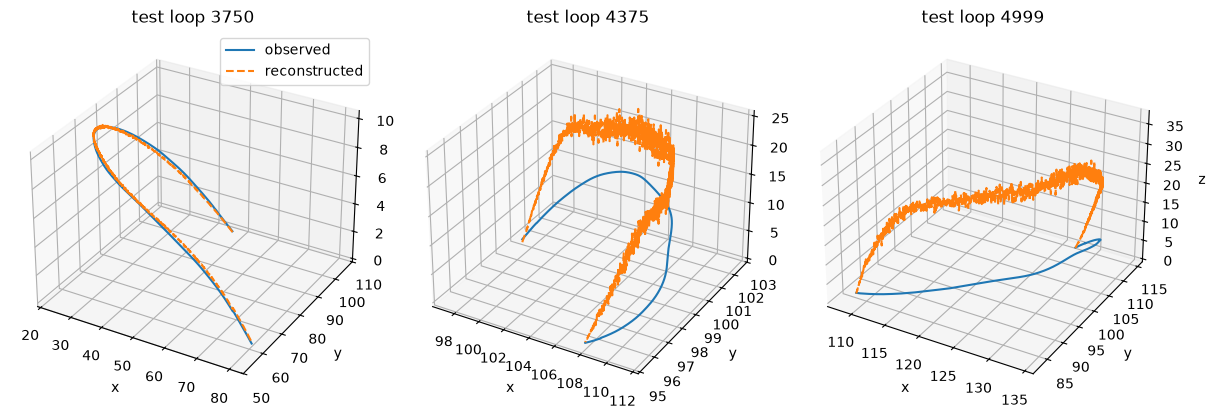

fig = plt.figure(figsize=(12, 4))
for panel, index in enumerate([0, len(y_test_raw) // 2, len(y_test_raw) - 1], start=1):
axis = fig.add_subplot(1, 3, panel, projection="3d")
axis.plot(
x_test_raw[index, :, 0],
x_test_raw[index, :, 1],
y_test_raw[index],
label="observed",
)
axis.plot(
x_test_raw[index, :, 0],
x_test_raw[index, :, 1],
predictions[index],
label="reconstructed",
linestyle="--",
)
axis.set_title(f"test loop {test_indices[index]}")
axis.set_xlabel("x")
axis.set_ylabel("y")
axis.set_zlabel("z")
axes = fig.axes
axes[0].legend()
plt.tight_layout()
plt.show()
print(
"HELIO_RESULT "
+ json.dumps(
{
"model_point_rmse": model_evidence["point_rmse"],
"baseline_point_rmse": baseline_evidence["point_rmse"],
"model_loop_rmse": model_evidence["loop_rmse_mean"],
"prediction_shape": list(predictions.shape),
"split": {"train": [0, 2999], "validation": [3000, 3749], "test": [3750, 4999]},
},
sort_keys=True,
)
)
assert predictions.shape == y_test_raw.shape
assert np.isfinite(predictions).all()
model: {
"point_mae": 13.339418411254883,
"point_rmse": 17.805435653708656,
"r2": -17.02708625793457,
"loop_mae_mean": 13.339418411254883,
"loop_mae_median": 14.348398208618164,
"loop_rmse_mean": 14.37874984741211
}
training-mean z-profile baseline: {
"point_mae": 1.526468276977539,
"point_rmse": 1.9913593440856479,
"r2": 0.7745139598846436,
"loop_mae_mean": 1.5264685153961182,
"loop_mae_median": 1.3986599445343018,
"loop_rmse_mean": 1.778918981552124
}
HELIO_RESULT {"baseline_point_rmse": 1.9913593440856479, "model_loop_rmse": 14.37874984741211, "model_point_rmse": 17.805435653708656, "prediction_shape": [1250, 1500], "split": {"test": [3750, 4999], "train": [0, 2999], "validation": [3000, 3749]}}
How to read this result#
The reconstruction is evaluated only against the supplied arrays. Their archive does not contain enough provenance to make claims about broader solar populations, measurement uncertainty, or out-of-distribution performance.
